Egraphs and Automated Reasoning

Looking Back to Look Forward

Philip Zucker

June 22, 2024

The Main Points of The Talk

• Simplification & Completion
• Union-find is Ground Atomic Completion
• E-Graph is Ground Term Completion
• ? is Lambda, Context, Destructive
• Compilers from Automated Reasoners

In the Beginning...

💥 SIMPLIFICATION 💥

Greedy Simplification

• ex: $a + 0 \rightarrow a$
• Good
  • Fast
  • Simple
• Bad
  • Rule Interaction / Phase Ordering $\{a * 2 \rightarrow a \ll 1; (a*b)/b \rightarrow a \}$
  • Non termination $a + b \rightarrow b + a$
  • Incompleteness / Suboptimality

E-Graphs 🥚

• They're Good
  • Graphical, Simple
  • Declarative-ish
  • Operational-ish
  • Fast-ish
• Many applications
• Usage Modes
  • Proving: Term -> Term -> Bool/Proof
  • Simplifying: Term -> Term

$$ a * 2 = a \ll 1 $$ $$ (a * 2) / 2 = a *(2 / 2) = a * 1 = a $$

Refinements

• Paramodulation (60s) - Go breadth first and conditional
• Completion (70s) - Make greedy good, remove redundancy
• Superposition (90s) - Combo

Completion

• Make Equations into "Good" Rules
  • Terminating
  • Confluent - No phase ordering problem
• Early Stopping
  • Goal Driven
  • Simplification Driven

Basic Completion

1. Orient according to Term Order $$[X * 2 = X \ll 1] \Rightarrow \{X * 2 \rightarrow X \ll 1\}$$
2. Add critical pairs (CPs) as equations $$\{X * 2 \rightarrow X \ll 1; (X*Y)/Y \rightarrow X\} \Rightarrow $$ $$ [(X \ll 1) / 2 = X]$$
3. Reduce Equations $$[a = b], \{a \rightarrow c\} \Rightarrow [c = b], \{a \rightarrow c\}$$
4. Repeat

More Advanced Completion

Src: Baader and Nipkow

Twee

• Theorem prover for equational logic
• It is built around completion
• Optimized Haskell
• TPTP input
• CASC UEQ

%%file /tmp/shift.p
fof(shift, axiom, ![X] : mul(X,two) = shift(X, one)).
fof(cancel, axiom, ![X,N] : div(mul(X,N),N) = X).

fof(goal, conjecture, true = false).

Overwriting /tmp/shift.p

!twee /tmp/shift.p

Here is the input problem:
  Axiom 1 (shift): mul(X, two) = shift(X, one).
  Axiom 2 (cancel): div(mul(X, Y), Y) = X.
  Goal 1 (goal): true = false.

1. mul(X, two) -> shift(X, one)
2. div(mul(X, Y), Y) -> X
3. div(shift(X, one), two) -> X

Ran out of critical pairs. This means the conjecture is not true.
Here is the final rewrite system:
  mul(X, two) -> shift(X, one)
  div(mul(X, Y), Y) -> X
  div(shift(X, one), two) -> X

RESULT: CounterSatisfiable (the conjecture is false).

The Main Points of The Talk

• Simplification & Completion
• Union-find is Ground Atomic Completion
• E-Graph is Ground Term Completion
• ? is Lambda, Context, Destructive
• Compilers from Automated Reasoners

Union Finds as Atomic Rewrite Systems

• Egraph ~ union find + hash cons
• Union find
  • forest of equivalence classes
  • Pointers up to parents
• Find = Convergent Dynamical System
• Convergent Dynamic System = Confluent Abstract Rewrite System

TRS	UF
Run TRS	Find
Add equation	Union
R/L simplify	Compression
Term Ordering	Tie Breaking

%%file /tmp/unionfind.p
cnf(ax1, axiom, a = b).
cnf(ax2, axiom, b = c).
cnf(ax3, axiom, c = d).
cnf(ax4, axiom, d = e).
cnf(ax5, axiom, f = g).

cnf(false, conjecture, true = false).

Overwriting /tmp/unionfind.p

!twee /tmp/unionfind.p

Here is the input problem:
  Axiom 1 (ax5): f = g.
  Axiom 2 (ax1): a = b.
  Axiom 3 (ax2): b = c.
  Axiom 4 (ax4): d = e.
  Axiom 5 (ax3): c = d.
  Goal 1 (false): true = false.

1. g -> f
2. b -> a
3. c -> a
4. d -> e
5. e -> a

Ran out of critical pairs. This means the conjecture is not true.
Here is the final rewrite system:
  b -> a
  c -> a
  d -> a
  e -> a
  g -> f

RESULT: CounterSatisfiable (the conjecture is false).

R = [
    (b,a),
    (c,a),
    (d,a),
    (e,a),
    (g,f)
]
show_rewrite(R)

$$ b \rightarrow a $$ $$ c \rightarrow a $$ $$ d \rightarrow a $$ $$ e \rightarrow a $$ $$ g \rightarrow f $$

%%file /tmp/unionfind.p
% Twee's "union find" is proof producing
cnf(ax1, axiom, a = b).
cnf(ax2, axiom, b = c).
cnf(ax3, axiom, c = d).
cnf(ax4, axiom, d = e).
cnf(ax5, axiom, f = g).

cnf(false, conjecture, a = e).

Overwriting /tmp/unionfind.p

!twee /tmp/unionfind.p

Here is the input problem:
  Axiom 1 (ax5): f = g.
  Axiom 2 (ax1): a = b.
  Axiom 3 (ax2): b = c.
  Axiom 4 (ax3): c = d.
  Axiom 5 (ax4): d = e.
  Goal 1 (false): a = e.

1. g -> f
2. b -> a
3. c -> a
4. d -> a
5. e -> a

The conjecture is true! Here is a proof.

Axiom 1 (ax1): a = b.
Axiom 2 (ax2): b = c.
Axiom 3 (ax3): c = d.
Axiom 4 (ax4): d = e.

Goal 1 (false): a = e.
Proof:
  a
= { by axiom 1 (ax1) }
  b
= { by axiom 2 (ax2) }
  c
= { by axiom 3 (ax3) }
  d
= { by axiom 4 (ax4) }
  e

RESULT: Theorem (the conjecture is true).

The Main Points of The Talk

• Simplification & Completion
• Union-find is Ground Atomic Completion
• E-Graph is Ground Term Completion
• ? is Lambda, Context, Destructive
• Compilers from Automated Reasoners

E-Graph is Ground Term Completion

• Egraph = Completed Reduced Ground Rewrite System
• Ground completion "solves" ground equalities
• E-graph "solves" ground equalities

TRS	Egraph
Canonical Term	EClass
R/L-simplify	Canonization
Run Rules	Extract
Term Orders	Extract Objective
KBO Weights	Weights

%%file /tmp/groundshift.p
fof(shift, axiom, mul(a,two) = shift(a, one)).
fof(assoc, axiom, div(mul(a,two),two) = mul(a,div(two,two))).
fof(cancel, axiom, div(two,two) = one).
fof(unit_mul, axiom, mul(a,one) = a).
fof(cancel, axiom, start_term(q,q,q,q,q,q,q) = div(mul(a,two), two)).

fof(goal, conjecture, true = false).

Overwriting /tmp/groundshift.p

!twee /tmp/groundshift.p

Here is the input problem:
  Axiom 1 (cancel): div(two, two) = one.
  Axiom 2 (unit_mul): mul(a, one) = a.
  Axiom 3 (shift): mul(a, two) = shift(a, one).
  Axiom 4 (assoc): div(mul(a, two), two) = mul(a, div(two, two)).
  Axiom 5 (cancel): start_term(q, q, q, q, q, q, q) = div(mul(a, two), two).
  Goal 1 (goal): true = false.

1. div(two, two) -> one
2. mul(a, one) -> a
3. mul(a, two) -> shift(a, one)
4. div(shift(a, one), two) -> a
5. start_term(q, q, q, q, q, q, q) -> a

Ran out of critical pairs. This means the conjecture is not true.
Here is the final rewrite system:
  mul(a, two) -> shift(a, one)
  mul(a, one) -> a
  div(two, two) -> one
  div(shift(a, one), two) -> a
  start_term(q, q, q, q, q, q, q) -> a

RESULT: CounterSatisfiable (the conjecture is false).

WAKEUP! THE MOST IMPORTANT SLIDE!!!

$$ mul(a, two) \rightarrow shift(a, one) $$ $$ mul(a, one) \rightarrow a $$ $$ div(two, two) \rightarrow one $$ $$ div(shift(a, one), two) \rightarrow a $$

Where are the E-classes and E-nodes?

• Flattening
  • Introduce fresh constants for every term
  • Make them less in term ordering

$$foo(biz(baz), bar) = bar$$

---

$$bar = e1$$ $$baz = e2$$ $$biz(e2) = e3$$ $$foo(e3,e1) = e4$$ $$e4 = e1$$

$$foo(biz(baz), bar) = bar$$

---

$$bar \rightarrow e1$$ $$baz \rightarrow e2$$ $$biz(e2) \rightarrow e3$$ $$foo(e3,e1) \rightarrow e4$$ $$e4 \rightarrow e1$$

• Two types of rules
  • $foo(e7,e4) \rightarrow e1$ = enode table
  • $e3 \rightarrow e1$ = union find
• Observations:
  • Not obviously possible for scoped terms. Slots? $e1(X,Y)$
  • Completion is an egraph with Universal (forall) variables / first class rules
  • Tree Automata $cons(q1, q2) \rightarrow q2$

E-matching

• Equality saturation
  • E-match into egraphs
  • Add new equality
• Run rules in reverse to generate all equivalent terms
• Top down and bottom up

Bottom up E-matching

• The simplest e-matching algorithm
  • Completely guess each pattern var
  • Build term corresponding to pattern
• Plays nicer
  • Theories (Commutativity via sorting)
  • Containers
  • Grobner bases?
  • Destructive rules?
• Perhaps related to aegraph

Strategies

$\frac{A \lor B \quad \neg A \lor C}{B \lor C} $

• Incomplete but pragmatic limitations on resolution
  • Set of Support - Rules vs EGraph
  • Prolog
  • Datalog ~ Hyperresolution + UR-resolution

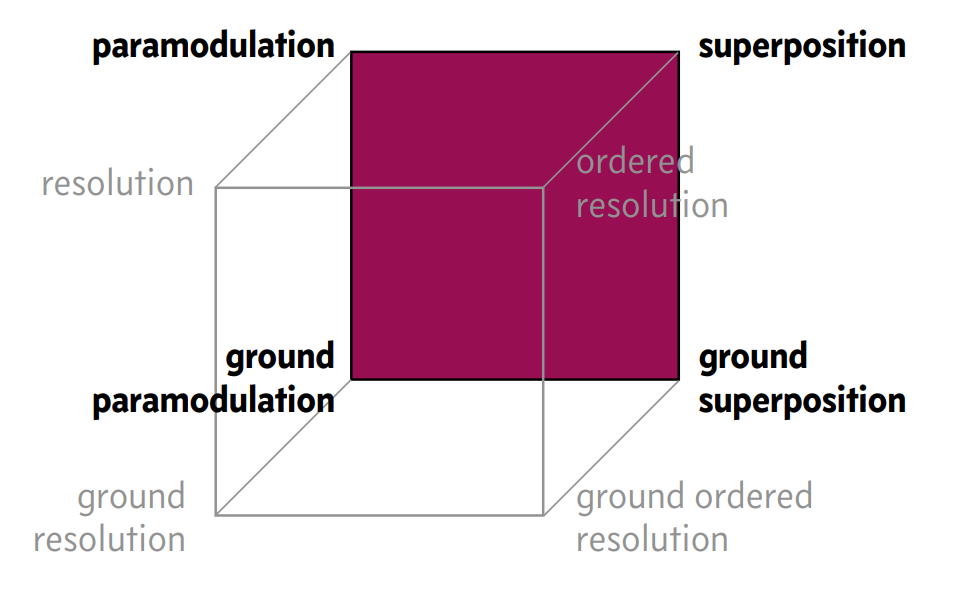

Prop	Equational
Resolution	Paramodulation
Ordered Resolution	Superposition
?	Completion
Ground Ordered Resolution	E-graph / Ground Completion / Ground Superposition
Prolog	Functional Logic Programming
Datalog	Egglog
ASP	?
Lambda Prolog	?
Hypothetical Datalog	?
Minikanren	?

The Main Points of The Talk

• Simplification & Completion
• Union-find is Ground Atomic Completion
• E-Graph is Ground Term Completion
• ? is Lambda, Context, Destructive
• Compilers from Automated Reasoners

Mysteries and Promises

• Context
• Lambdas
• Destructive

Context

• Twee
  • Efficient encodings of first-order Horn formulas in equational logic - Claessen & Smallbone
  • In Twee today.
  • Similar to ASSUME nodes
• Ground Superposition is a contextual egraph
  • Negative literal ~ context
  • Terminating but possibly explosive

$$\frac{s \approx t \quad \neg u \approx v \lor R}{\neg u[s / t] \approx v \lor R}$$

$$\frac{s \approx t \quad u \approx v \implies R}{ u[s / t] \approx v \implies R}$$

E – A Brainiac Theorem Prover

Lambda

• Complete and Efficient Higher-Order Reasoning via Lambda-Superposition - Alexander Bentkamp, Jasmin Blanchette, Visa Nummelin, Sophie Tourret, and Uwe Waldmann
  • Zipperposition and E
• A Combinator-Based Superposition Calculus for Higher-Order Logic - Ahmed Bhayat, Giles Reger
  • Vampire
• Lambda Free Higher Order Logic (LFHOL)

Destructive Rewriting

• Combination Problems (Chapter 9 TRAAT)
• Under what conditions does completion of Ground Eq + Rules stay well behaved?
  • Term Ordering of destructive rules probably informs how ground should work
• Two senses of "E-matching"

The Main Points of The Talk

• Union find E-Graph $\leftrightarrow$ Ground Atomic Completion
• Clues: Lambda, Context, Destructive
• Automated Reasoning $\rightarrow$ Compilers
  • Fast Implementation?
  • Simplifier Oriented Term -> Term

Thank You

• Abstract https://github.com/philzook58/egraphs2024-talk/blob/main/egraphs2024.pdf
• Blog posts:
  • https://www.philipzucker.com/egraph-ground-rewrite/
  • https://www.philipzucker.com/ground-rewrite-2/
  • https://www.philipzucker.com/bottom_up/
• References
  • Term Rewriting and All That (TRAAT)
  • Handbook of Automated Reasoning
  • Automated Reasoning: Introduction and Applications

%%file /tmp/context.p
% Twee as a contexual egraph/union find
fof(shift, axiom, (a = b) => b = c).
fof(cancel, axiom, c = d ).
fof(cancel, axiom, e = f ).

fof(goa,conjecture, true = false).

Overwriting /tmp/context.p

!twee /tmp/context.p

Here is the input problem:
  Axiom 1 (cancel): e = f.
  Axiom 2 (cancel): c = d.
  Axiom 3 (ifeq_axiom): ifeq(X, X, Y, Z) = Y.
  Axiom 4 (shift): ifeq(a, b, b, c) = c.
  Goal 1 (goa): true = false.

1. f -> e
2. c -> d
3. ifeq(X, X, Y, Z) -> Y
4. ifeq(a, b, b, d) -> d

Ran out of critical pairs. This means the conjecture is not true.
Here is the final rewrite system:
  c -> d
  f -> e
  ifeq(X, X, Y, Z) -> Y
  ifeq(a, b, b, d) -> d

RESULT: CounterSatisfiable (the conjecture is false).

def simplify1(x):
    match x:
        case ("add", ("const", m), ("const", n)):
            return ("const", m + n)
        case ("add", ("const", 0), y) | ("add", y, ("const", 0)):
            return y
        case _:
            return x
def simplify(expr):
    match expr:
        case ("add", x, y):
            return simplify1(("add", simplify(x), simplify(y)))
        case _:
            return simplify1(expr)
simplify(("add", ("const", 3), ("const", 4)))

('const', 7)

class UF():
    def __init__(self):
        self.rules = {}
    def find(self, x):
        # `find` reduces x with respect to the current rules (x -R-> retval)
        while self.rules.get(x) != None:
            x = self.rules.get(x)
        return x
    def union(self, x, y):
        # Do incremental completion starting with
        # (E,R) == ({x = y}, self.rules )
        x1 = self.find(x) # SIMPLIFY  ( {x1 = y} , R)
        y1 = self.find(y) # SIMPLIFY  ( {x1 = y1}, R)
        if x1 == y1: # TRIVIAL ({x1 = x1}, R)
            return x1 # (Empty, self.rules)
        else:
            if x1 < y1: # the "term order"
                x1,y1 = y1,x1 # swap
            self.rules[x1] = y1 # ORIENT  (empty, R U {x1 -> y1})
            return y1
    def canon(self):
        for lhs,rhs in self.rules.items():
            self.rules[lhs] = self.find(rhs) # r-simplify

Tree Automata

• Strings ~ single argument terms $aaabb = a(a(a(a(b(b(\epsilon))))))$
• Term rewriting formulation of DFA
  • $a^*b^* = \{a(q1) \rightarrow q1, a(q0) \rightarrow q1, b(q0) \rightarrow q0\}$
  • $a(a(a(a(b(b(q0)))))) \rightarrow^? q1$
• Generalizes to Tree. Finite State Folds
• Call $q1$ $e1$ and we have a flattened egraph

Src: Blanchette

%%file /tmp/groundshift.p
fof(e, axiom, a = e0).
fof(e, axiom, two = e1).
fof(e, axiom, mul(a,two) = e2).
fof(e, axiom, div(mul(a,two),two) = e3).
fof(e, axiom, one = e4).
fof(e, axiom, shift(a, one) = e5).
fof(e, axiom, div(two,two) = e6).
fof(e, axiom, mul(a, one) = e7).

fof(shift, axiom, mul(a,two) = shift(a, one)).
fof(assoc, axiom, div(mul(a,two),two) = mul(a,div(two,two))).
fof(cancel, axiom, div(two,two) = one).
fof(unit_mul, axiom, mul(a,one) = a).
fof(cancel, axiom, start_term(q,q,q,q,q,q,q) = div(mul(a,two), two)).

fof(goal, conjecture, true = false).

Overwriting /tmp/groundshift.p

!twee /tmp/groundshift.p

Here is the input problem:
  Axiom 1 (e): one = e4.
  Axiom 2 (e): a = e0.
  Axiom 3 (e): two = e1.
  Axiom 4 (e): shift(a, one) = e5.
  Axiom 5 (e): div(two, two) = e6.
  Axiom 6 (cancel): div(two, two) = one.
  Axiom 7 (e): mul(a, one) = e7.
  Axiom 8 (unit_mul): mul(a, one) = a.
  Axiom 9 (e): mul(a, two) = e2.
  Axiom 10 (shift): mul(a, two) = shift(a, one).
  Axiom 11 (e): div(mul(a, two), two) = e3.
  Axiom 12 (assoc): div(mul(a, two), two) = mul(a, div(two, two)).
  Axiom 13 (cancel): start_term(q, q, q, q, q, q, q) = div(mul(a, two), two).
  Goal 1 (goal): true = false.

1. one -> e4
2. a -> e0
3. two -> e1
4. shift(e0, e4) -> e5
5. div(e1, e1) -> e6
6. e6 -> e4
7. mul(e0, e4) -> e7
8. e7 -> e0
9. mul(e0, e1) -> e2
10. e5 -> e2
11. div(e2, e1) -> e3
12. e3 -> e0
13. start_term(q, q, q, q, q, q, q) -> e0

Ran out of critical pairs. This means the conjecture is not true.
Here is the final rewrite system:
  a -> e0
  two -> e1
  e3 -> e0
  one -> e4
  e5 -> e2
  e6 -> e4
  e7 -> e0
  mul(e0, e1) -> e2
  mul(e0, e4) -> e0
  div(e1, e1) -> e4
  div(e2, e1) -> e0
  shift(e0, e4) -> e2
  start_term(q, q, q, q, q, q, q) -> e0

RESULT: CounterSatisfiable (the conjecture is false).

BV = DeclareSort("BV")
mul = Function("*", BV, BV, BV)
shift = Function("\<\<", BV, BV, BV)
div = Function("/", BV, BV, BV)
a,one,two= Consts("a 1 2", BV)
e0,e1,e2,e3,e4,e5,e6,e7 = Consts("e0 e1 e2 e3 e4 e5 e6 e7", BV)
start = Const("start", BV)
R = [
    (a, e0),
    (two, e1),
    (e3, e0),
    (one,e4),
    (e5,e2),
    (e6,e4),
    (e7,e0),
    (mul(e0,e1),e2),
    (mul(e0,e4), e0),
    (div(e1,e1),e4),
    (div(e2,e1), e0),
    (shift(e0,e4), e2),
    #(start, e0)
]
show_rewrite(R)

%%file /tmp/shift.p
fof(shift, axiom, ![X] : mul(X,two) = shift(X, one)).

fof(assoc, axiom, ![X,Y,Z]: div(mul(X,Y), Z) = mul(X, div(Y,Z))).
fof(cancel, axiom, ![X]: div(X,X) = one).
fof(mul_one, axiom, ![X]: mul(X,one) = X).

fof(goal, conjecture, true = false).

Overwriting /tmp/shift.p
